Josam  /  Products
Product Image

32330 Series

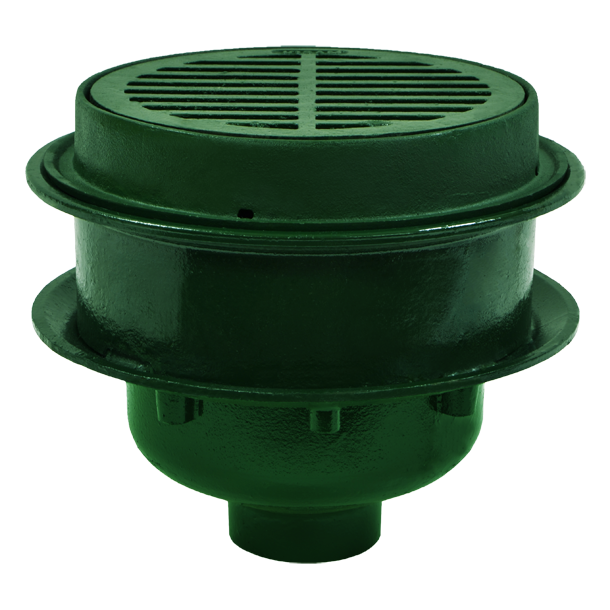

Floor Drain: Deep Sump w/C.I. 12-5/8" Super-Flo Round Top & 8" Bucket

Specification
32330 Series coated cast iron Floor Drain, deep two-piece body with double drainage flange, WEJLOC non-puncturing flashing clamp collar, weepholes, bottom outlet, round top and removable sediment bucket which supports a medium-duty loose-set anti-tiltingSUPER- LO grate with perimeter slots.

Application

Product Details
Parts
List
Submittal Sheets
CAD Drawings
Resource Center
Price
Item
Domestic Content Message
OPTIONS
-SDSpecial Duty Grate -70Less Bucket
-TSITrap Seal Insert -84S.S. Mesh Bucket Liner
-VPSecured Grate, Vandal-Proof Screws -88Supplementary Strainer
-15Chained Grate -92Galvanized Cast Iron Parts
-19C.I. Undergrate w/Satin Fin Nik Top
-20C.I. Undergrate w/Satin Fin Brz Top -XInside Caulk Outlet
-493/4 Inch Primer Tap -ZNo-Hub Spigot Outlet
-501/2 Inch Primer Tap -66No-Hub Side Outlet
TYPE # PIPE SIZE  LBS
32332 2 86
32333 3 87
32334 4 88
32335 5 89
32336 6 90
32338 8 92

Cross Reference Guides

This cross reference guide offers the best cross reference from other drain manufacturer’s products to a Josam equivalent series. You may need to add options to the Josam series to match the other manufacturer’s options. In some cases, adding options on a competitor’s model will require a different Josam series than the one selected in this chart. If you need assistance with product cross reference, please contact  Josam Customer Service.

JR Smith

Mifab

Wade

Watts

Zurn
